Co-Phased Antenna



In amateur radio, a co-phased antenna refers to a setup where two or more identical antennas are physically and electrically combined to operate together as a single antenna system. The goal of co-phasing antennas is to achieve specific radiation pattern characteristics or increase the overall gain and directivity of the system.

Here are some key points about co-phased antennas in amateur radio:

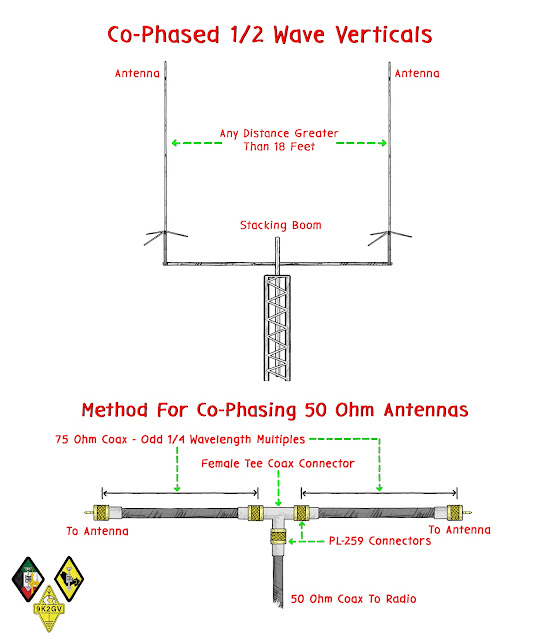

Antenna Configuration: Co-phased antennas are typically arranged side by side or stacked vertically, with precise spacing between them. The spacing between the antennas is critical and depends on the desired radiation pattern and frequency of operation.

Phasing Harness: A phasing harness or network connects the co-phased antennas to the feedline or transmitter. This harness ensures proper phase relationship and impedance matching between the individual antennas, allowing them to work together effectively.

Radiation Pattern: Co-phased antennas can exhibit specific radiation pattern characteristics, such as increased gain in a particular direction or enhanced front-to-back ratio. By adjusting the phasing and spacing of the antennas, the radiation pattern can be tailored to suit specific needs, such as maximizing signal strength in a desired direction or minimizing interference from certain angles.

Gain and Directivity: Co-phased antennas can provide increased gain and directivity compared to a single antenna. The combination of multiple antennas working together enhances signal strength and concentrates radiation in a specific direction, making them useful for long-range communication or working with weak signals.

Installation Considerations: Proper installation and alignment of co-phased antennas are crucial for optimal performance. The spacing between the antennas and their alignment should be carefully adjusted according to the desired radiation pattern and frequency of operation. This ensures that the antennas work in harmony and provide the desired performance characteristics.

Frequency Considerations: Co-phased antennas can be designed and optimized for specific frequency ranges. Adjustments in the phasing and spacing may be required when operating on different frequency bands.

Co-phased antennas are commonly used by amateur radio operators for various purposes, such as improving signal strength, achieving directional coverage, or enhancing communication range. They can be particularly beneficial for weak signal work, long-distance contacts, or situations where antenna gain and directivity are desired.

It's important to note that designing and implementing a co-phased antenna system can be complex, requiring careful consideration of factors such as antenna spacing, phasing, impedance matching, and radiation pattern characteristics. Consulting antenna design resources or seeking advice from experienced operators can be helpful when setting up a co-phased antenna system.
